Aligning your Temperature Dial

To correctly align the temperature knob with the dial:

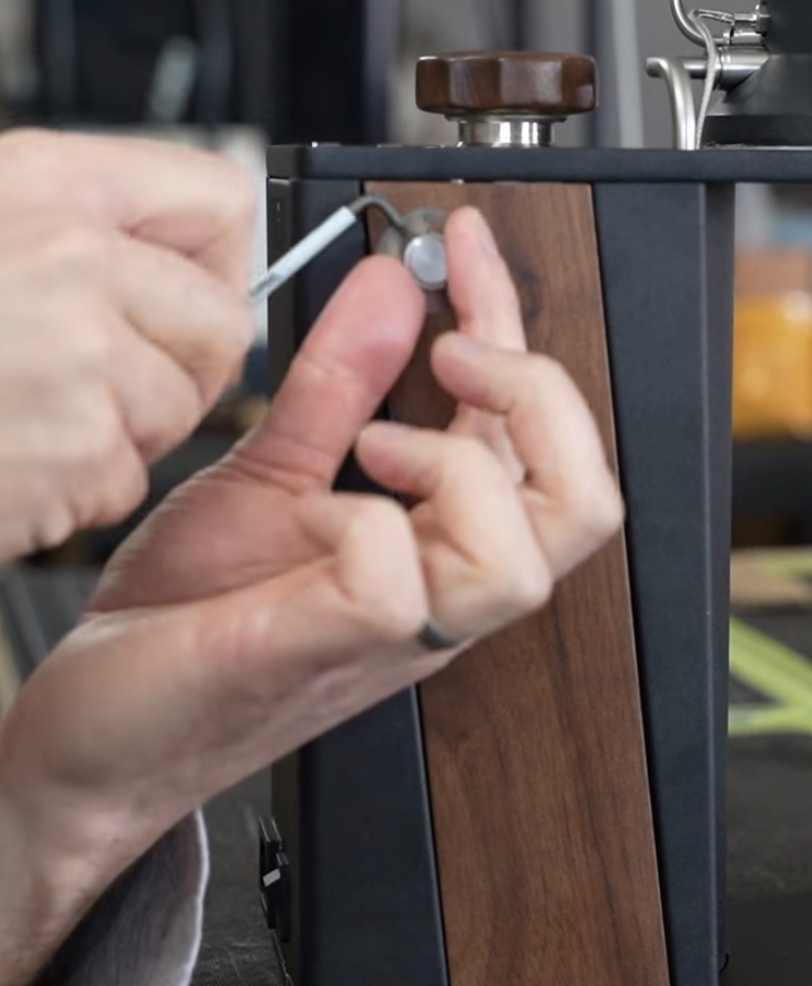

1) Use a 1.5mm hex key to loosen the grub screw on the knob, then pull the knob off the potentiometer.

2) Rotate the shaft of the potentiometer completely counter clockwise, then click it back counter clockwise by one detent/click


3) Place the temperature knob back on, and align the indicator line on the knob with 88c on the temperature dial


4) Re-tighten the grub screw with the 1.5mm hex key to lock the knob in place
