Leak - Pressure Gauge Port

Bracket Fitment

If the gauge fitting is popping out of the push to connect and leading to leaks, ensure that

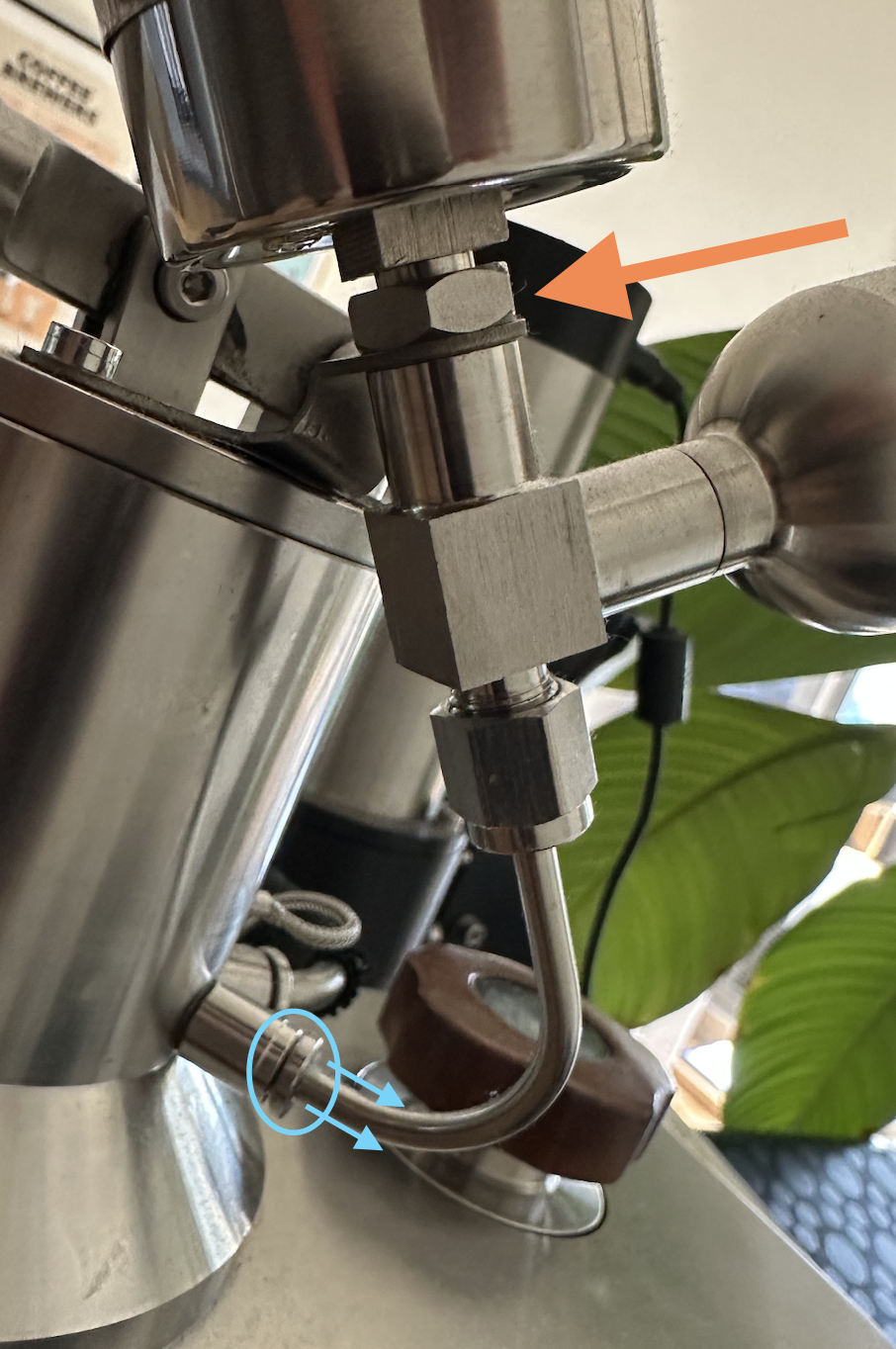

1. The nut underneath the gauge (orange arrow) is tightened very snug.

   Ensure there is no play between the tube fitting and the bracket that connects it to the grouphead. You want the nut, bracket, and the fitting below to fit together flush, with no gaps.

   NOTE: To ensure this is sufficiently tight, please first unscrew the mount from the grouphead prior to tightening this nut

2. The outer ring of the push-to-connect (blue circle) is pulled all the way out to engage the locking teeth

Bracket Adjustments

If your bracket does not sit flush with the nut above and the rest of the gauge mount below then follow the below steps to make adjustments.

1. Unscrew the bracket from the top of the grouphead (thus allowing it to move freely),

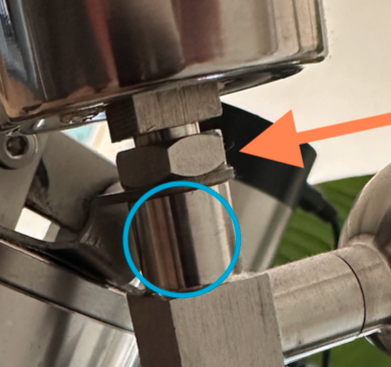

2. Seat the bracket flush against the blue part of the mount (see picture below). Note how there is no space between the nut and bracket.



3. Then tighten the nut above it.
4. Ideally you want all of those components perfectly parallel so there is no wiggle room.

If you are still having troubles achieving a good seal with the gauge/transducer fitting, here is a video on how to improve the fit of this part.
