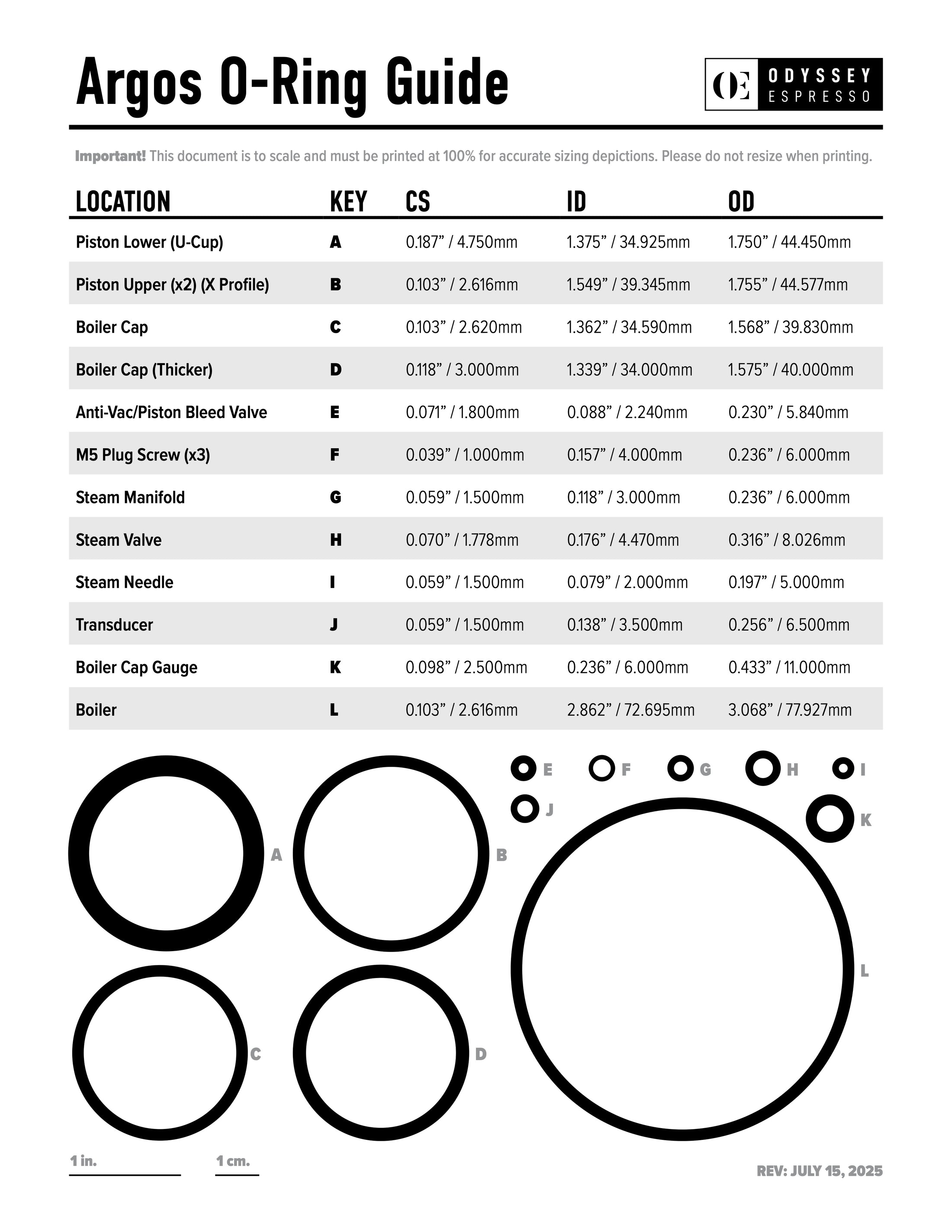

All Replaceable Gaskets and O-rings

O-Ring Replacement Resources

We don’t yet have a single video that walks through all gasket replacements, but the following videos cover key parts on the Argos:

Steam Manifold

• How to remove the steam manifold from the machine

  - the steam manifold plugs are access here as well

• How to replace the steam manifold O-ring
• How to disassemble and replace the anti-vacuum valve

Boiler

• Replacing the boiler O-ring

Boiler Cap

• Replacing the boiler cap O-ring

Steam Wand

• Replacing the steam wand O-ring and crush gaskets

Piston

The piston gaskets are straightforward to install. The key detail to remember is that the widest part of the lowest gasket must face upward (see photo below). If assembled upside down, the gasket may allow leaks through the shower screen once the boiler reaches operating temperature.
