Mounting The Argos

Base Plate Bolt Differences by Machine Serial #

The base plate bolt specification depends on which batch of machine you own.

Machines with Serial # 611 and below

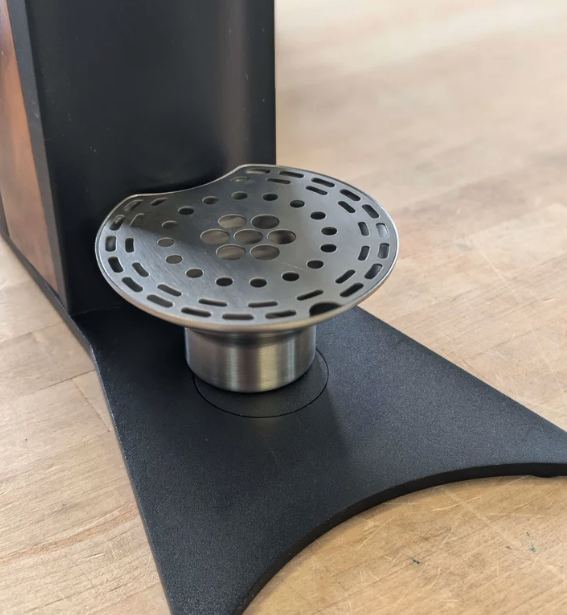

    • Identified by the original drip tray design (no cutout)
    • Bolt thread: M10 × 1.00, 6 mm deep

Machines with Serial # 612 and above

    • Identified by the updated drip tray design (with cutout)
    • Bolt thread: M10 × 1.25, 6 mm deep

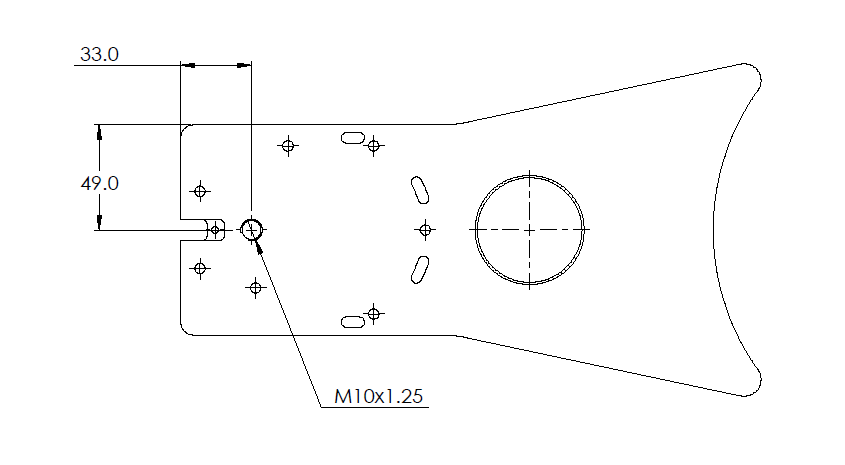

The dimensions are in millimeters. So 33mm and 49mm.

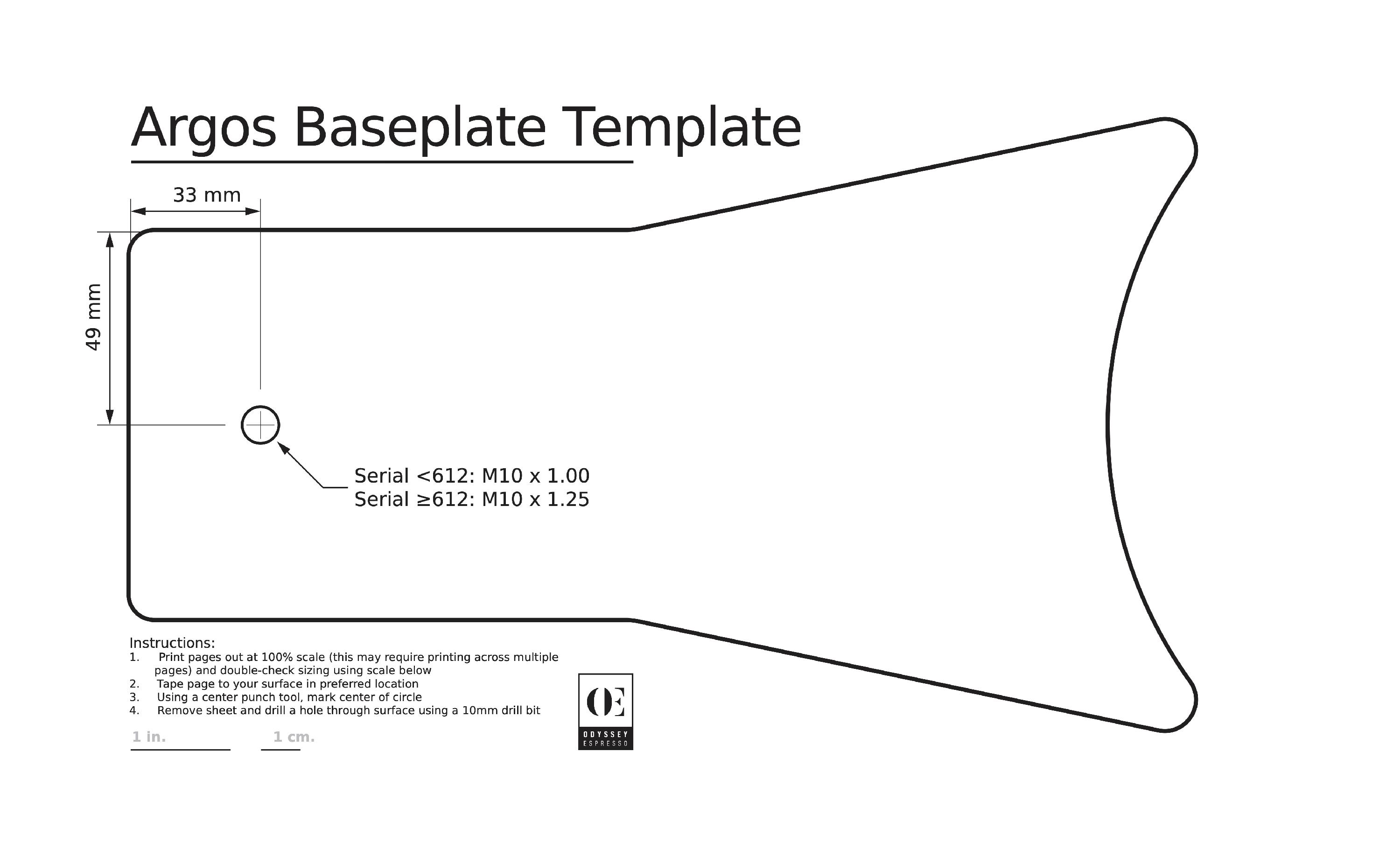

Here is a .dxf file as well.
